CMF Mounting Fixtures

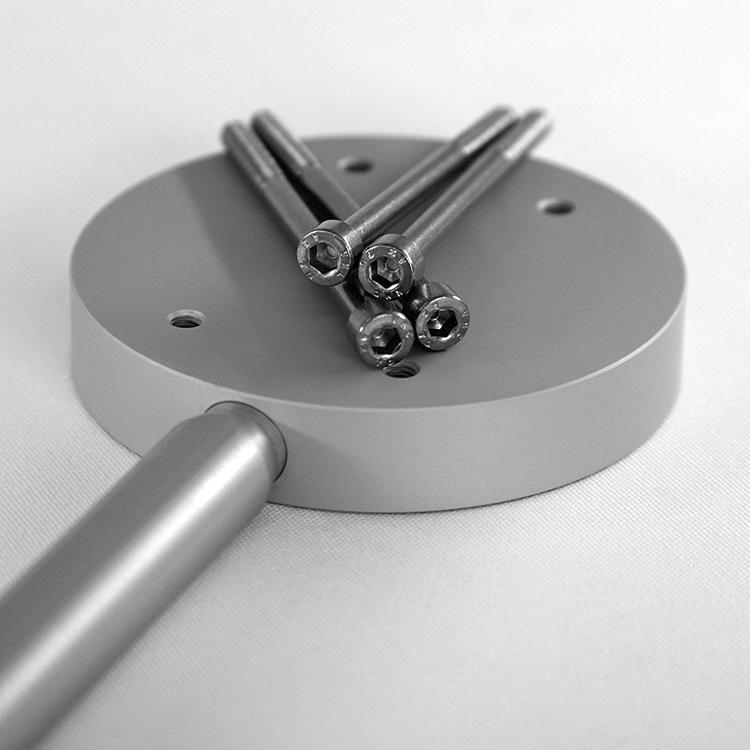

CMF1 mounting fixture is a small round plate with integral rod for mounting one upwards and/or one downwards facing instrument without a ventilation unit.

For CMP3, SMP3, CMP6, SMP6, CMP10, SMP10, CMP11, SMP11, CMP21, SMP21, CMP22 and SMP22 pyranometers, CGR3, SGR3, CGR4, SGR4 pyrgeometers and CUV5 and SUV5 broadband UV radiometer.

CMF1 has a 88 mm diameter plate with a non-removable mounting rod of 16 mm diameter and 350 mm long. The CMB1 mounting bracket can be used to attach the CMF1 to poles, masts or walls.

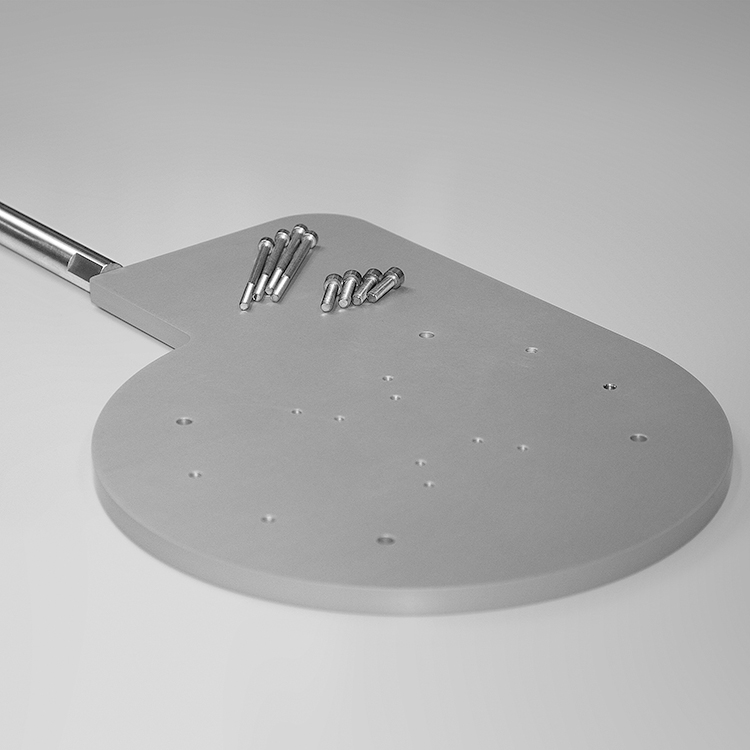

CMF4 mounting fixture is a larger version that can be used for mounting instruments either unventilated or fitted with the CVF3 or CVF4 ventilation unit.

For CMP3, SMP3, CMP6, SMP6, CMP10, SMP10, CMP11, SMP11, CMP21, SMP21, CMP22 and SMP22 pyranometers, CGR3, SGR3, CGR4, SGR4 pyrgeometers and CUV5, SUV5 and UVS series broadband UV radiometers.

CMF4 has a 280 mm diameter plate with a non-removable mounting rod of 20 mm diameter and 350 mm long.

The CMF4 can be used with 2 CVF4's to create a ventilated net radiometer or albedometer. The CMB1 mounting bracket can be used to attach the CMF4 to poles, masts or walls.
