SMP3 Pyranometer

  • ISO 9060 spectrally flat Class C
  • 0 to 1 Volt or 4 to 20 mA analogue output
  • No change of desiccant for 10 years
  • Active temperature correction from -40 °C to +80 °C
  • 5 year warranty



Add this product to basket Request information
Share this page

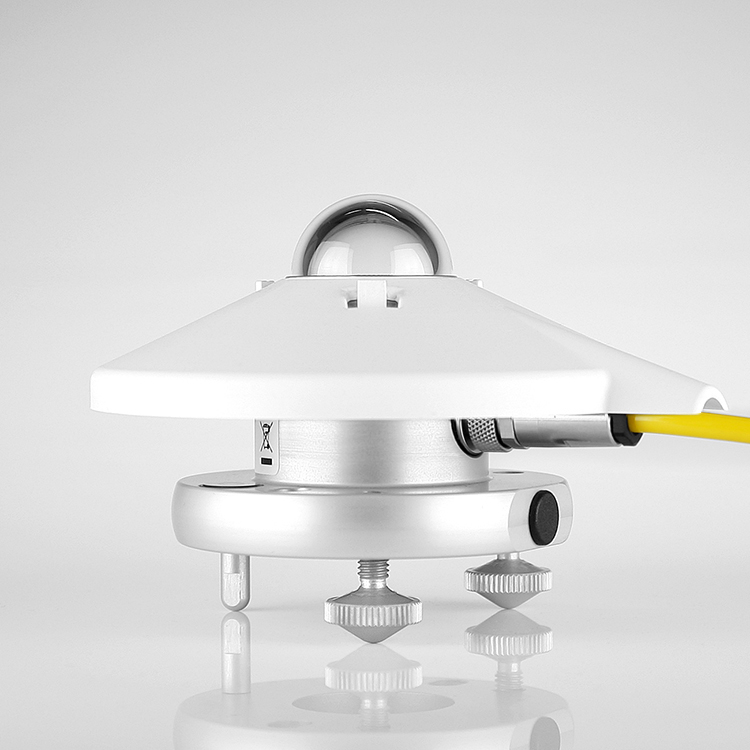

SMP3 Pyranometer

The SMP3 is a smart pyranometer with low maintenance and industry standard digital and analogue amplified outputs. Based on the proven CMP3 technology the SMP3 adds Modbus® interface, improved response time and temperature corrected measurement data. The wide and low power supply range from 5 to 30 VDC makes integration in meteorological stations easy. The SMP is protected against over voltage, reversed polarity and short circuiting. Because all SMP’s have identical sensitivity and connections exchanging instruments during recalibration is easy.

SmartExplorer Windows™ for data logging, display of data and Modbus® address setting is provided as standard.

SMP3 measures global solar radiation on a horizontal plane. When tilted with the same angle as a PV panel it measures the tilted global radiation, for PV module efficiency calculations.

Back to productcategory

Specifications

Spectral range (50% points) 300 to 2800 nm
Response time (63%) < 1.5 s
Response time (95%) < 12 s
Zero offset A < ±15 W/m²
Zero offset B < ±5 W/m²
Directional response (up to 80° with 1000 W/m² beam) < ±20 W/m²
Temperature response (-20 to +50°C) < ±3 %
Temperature response (-40 to +70°C) < ±4 %
Analogue output (-V version) 0 to 1 V
Analogue output (-A version) 4 to 20 mA

FAQ

  • What type of pyranometer can I use for my fixed PV panels farm?

    • For this application the CMP10 and SMP10 are advised as they have an internal drying cartridge that will last for at least 10 years.

      Please note that the pyranometer needs to be mounted in the same angle (POA) as the PV panel.



      For users that prefer the desiccant visible Kipp & Zonen offers the CMP11 and SMP11 with visible and user changeable desiccant.

      Is your question still unanswered? Contact Support

Accessories

Accessory Description
CMB1 Mounting Bracket CMB1 Mounting Bracket
More information 		Universal mounting bracket for easy attachment of mounting rods Add To Basket
CM121B/C Shadow Ring CM121B/C Shadow Ring
More information 		To be used with Kipp & Zonen pyranometers, smart pyranometers, pyrgeometers and UV radiometers to shield the instrument from direct radiation. Add To Basket
CMF Mounting Fixtures CMF Mounting Fixtures
More information 		CMF1 and CMF4 mounting fixtures for all series pyranometers Add To Basket
CVF4 Ventilation Unit CVF4 Ventilation Unit
More information 		Ventilating solar radiation instruments improves the reliability and accuracy of measurements and reduces maintenance. CVF4 is a high quality waterproof ventilation unit designed to be used with Kipp & Zonen pyranometers, pyrgeometers, and ultraviolet radiometers. Add To Basket
LOGBOX SE Data Logger LOGBOX SE Data Logger
More information 		LOGBOX SE is a weatherproof field data logger with 4G LTE cellular communication. Designed for use with all Kipp & Zonen solar radiation instruments, both analog and Modbus®, including RT1. It is also compatible with DustIQ and Lufft all-in-one weather stations. LOGBOX SE can operate from internal batteries, external DC power or a solar panel. Add To Basket
Smart Powered Hub and Smart Hub Smart Powered Hub and Smart Hub
More information 		The Smart Hub is a passive 6 to 1 weatherproof hub for 2-wire RS-485 connections. The Smart Powered Hub adds a heavy duty 2.2A power supply. Add To Basket
PMU485 Smart Setup Hub PMU485 Smart Setup Hub
More information 		The PMU485 is a power source and data connection between a Smart Kipp & Zonen device and a PC. Add To Basket
Fixed Feet For Tilted CMP/SMP6-22 Mounting Fixed Feet For Tilted CMP/SMP6-22 Mounting
More information 		Kit with two fixed feet for easy installation of POA pyranometers. Add To Basket
