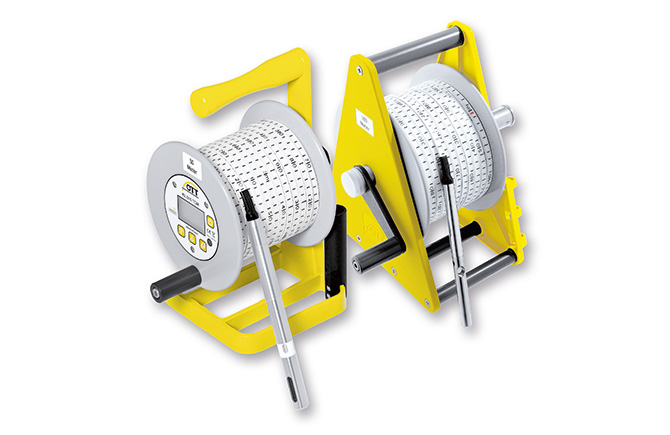

KL 010 Electric Contact Gauge
Product Number: 24.320.015.9.5Temperature
Overview
The OTT KL 010 series contact gauges are designed to perform both manual data acquisition (target date measurements) and calibration and control measurements at groundwater level stations using dataloggers. These units have been tried and tested for years and are primarily used for measuring depths. Additionally, the KL 010 TM and KL 010 TCM model versions can be used for measuring the water temperature or electrical conductivity, respectively.
All models feature a both appropriate and rugged design. The smoothly running measuring tape drum is held by a sturdy frame and can be easily transported. For measuring, the probe at the heavy-duty measuring tape is lowered down to groundwater level – and even lower for profile measurements – and can easily be retracted using the hand crank. According to their intended use, the individual probes are not only precise, but also durable and robust. The different model variants are available with different measuring tape lengths.
Specifications
Technical Attributes
| Measuring tape length | 15, 25, 30, 50, 80, 100, 150, 200, 250, 300, 500 and 750 m / 49,21 ft, 82,02 ft, 98,43 ft, 164,04 ft, 262,47 ft, 328,08 ft, 492,13 ft, 656,17 ft, 820,21 ft, 984,25 ft, 1640,42 ft and 2460,63 ft |
| Temperature | Without temperature measurement |
| Signalling | Optical signal generator (signal lamp; LED optionally); accoustic signal generator |
| Probe body | Stainless steel / nickel-plated brass; 15 mm ⌀, 190 mm long |
| Weight | ±3.8 kg (25 m) ... ±14.3 kg (500 m) / ±8.4 lb (82 ft) … ±31.5 lb (1640 ft) |
